Dunbar Substation, SCOTLAND

Project Name

Dunbar Substation, SCOTLAND

Client:

SPEN (Scottish Power)

Main Contractor:

Scottish Power

Consultant:

Arcadis

Project:

Dunbar 132/33kV BoP

Location:

Scotland

Sectors:

Substations and Renewables

Services:

HV/MV Services

PROJECT DESCRIPTION

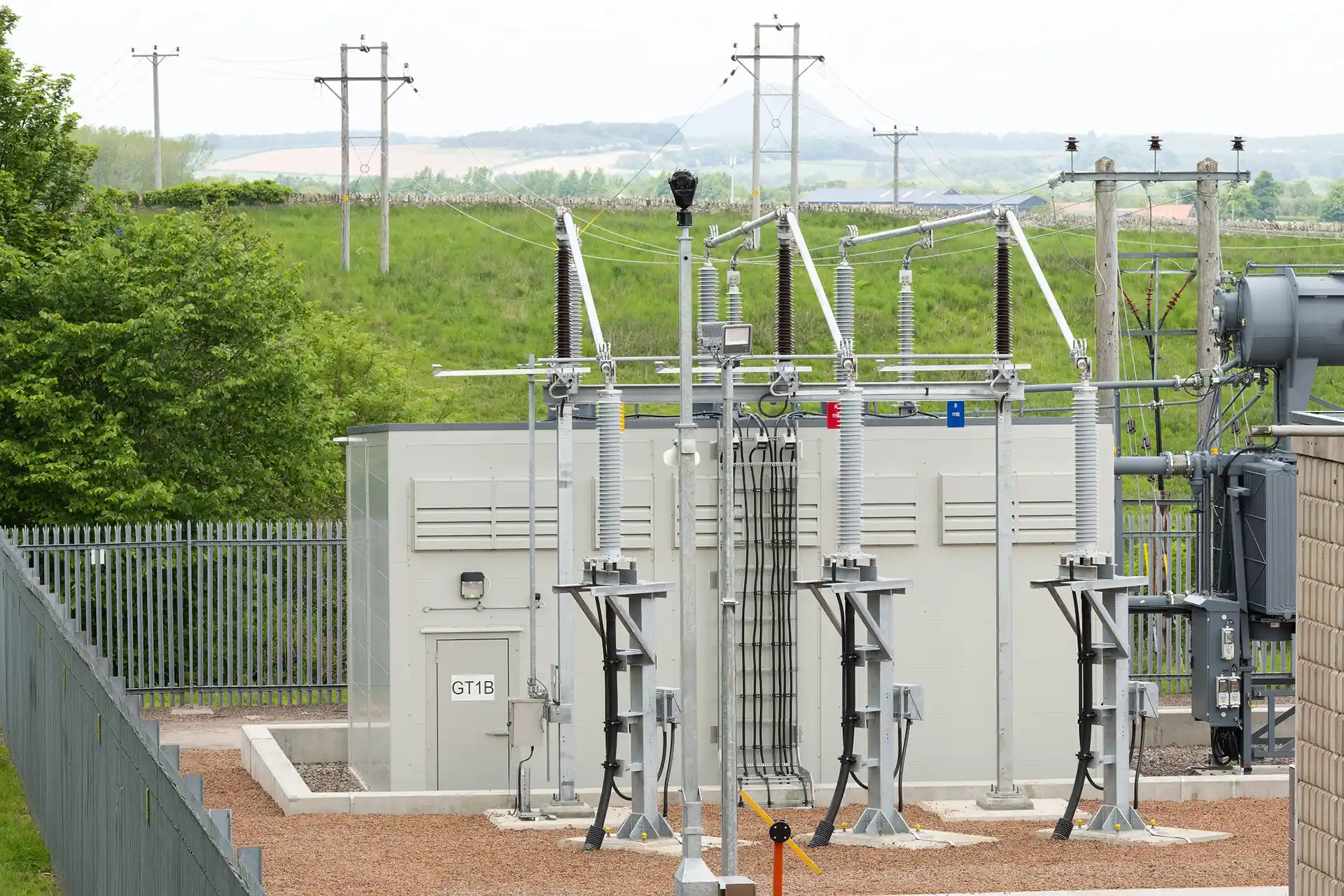

Kirby was awarded the BoP contract to facilitate the substation extension of two new 132kV transformers and diversion of the 33kV cable system at Dunbar Substation.

Works included the supply, installation, testing and commissioning of electrical services associated with the energisation of the transformers and plant equipment.

SCOPE OF WORK

Kirby were responsible for the electrical scope of works:

• Primary Equipment Transmission Connection
• Primary Equipment Distribution Connection
• Earthing & Bonding
• Control & Protection System
• MV Cable Connection System
• Fibre Network
• OHL
• Transmission Underground Cables
• DC Battery Systems
• SCADA

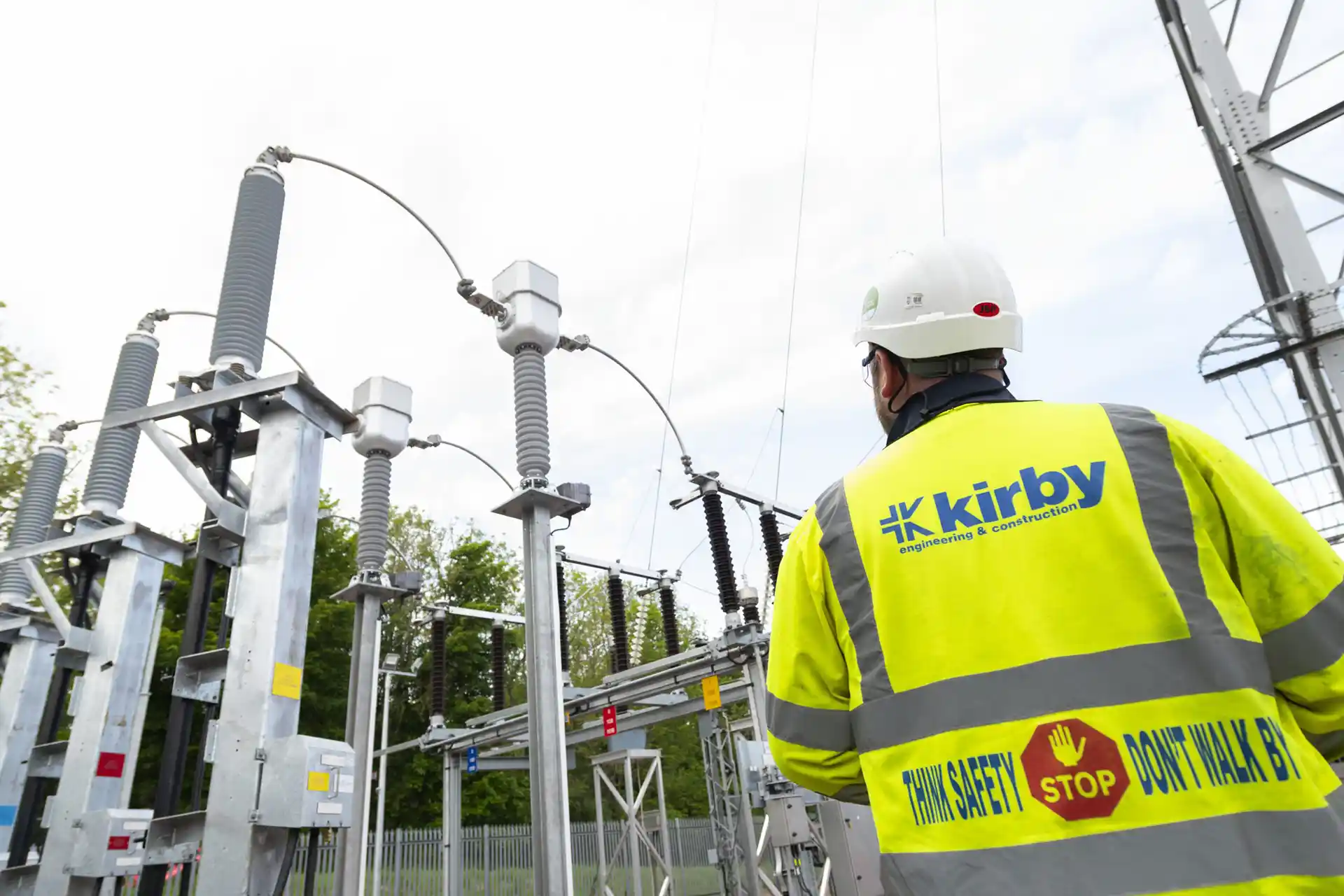

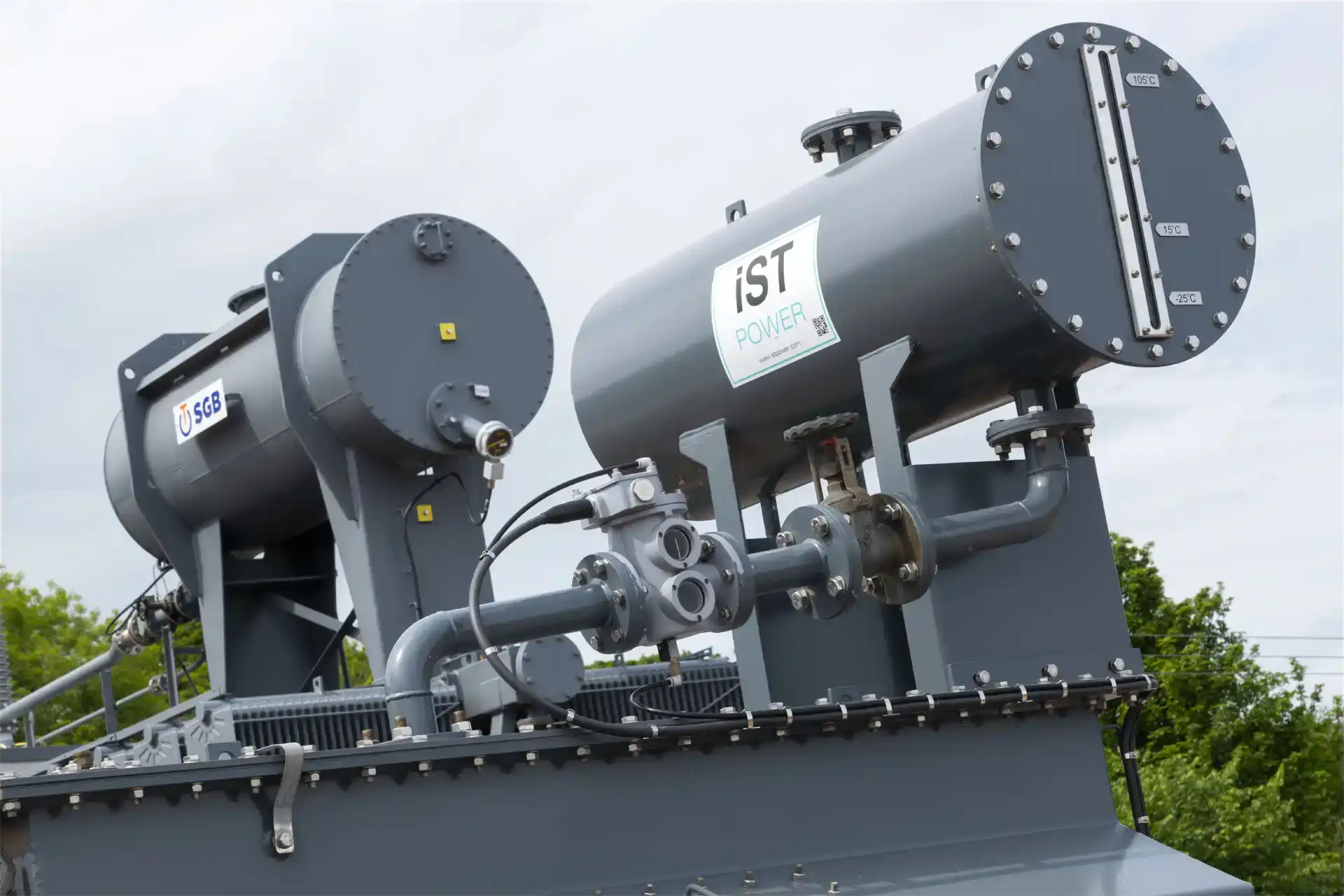

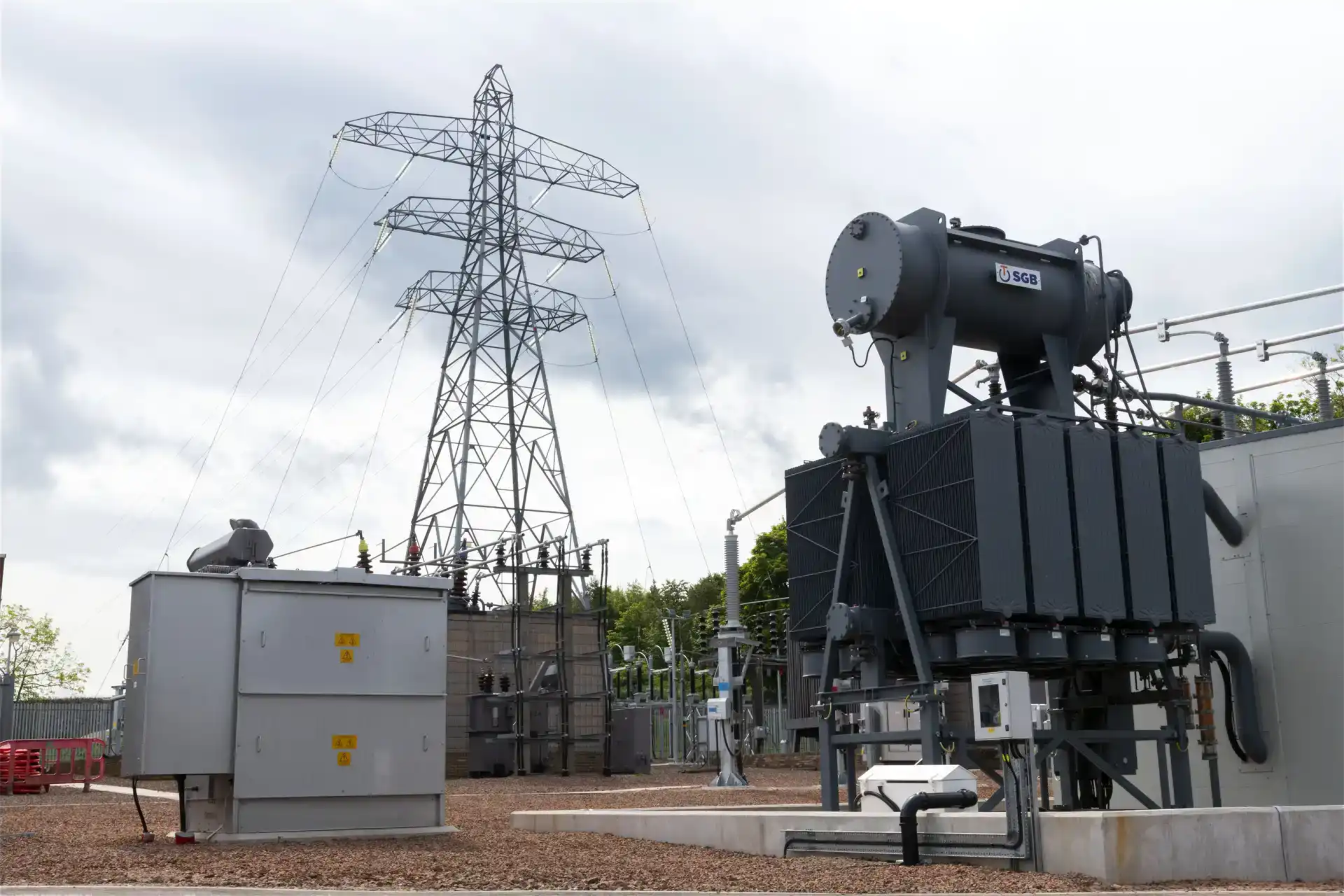

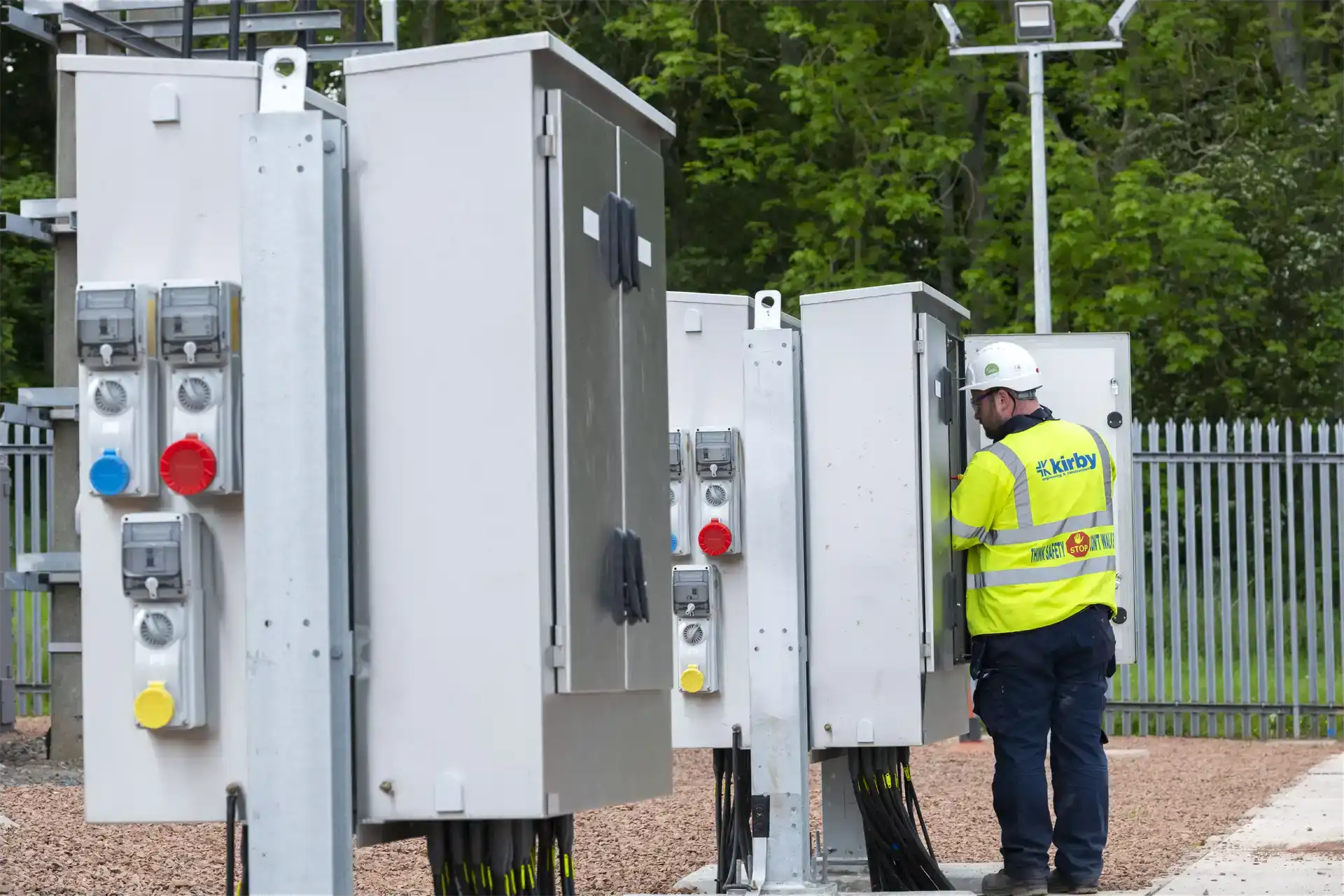

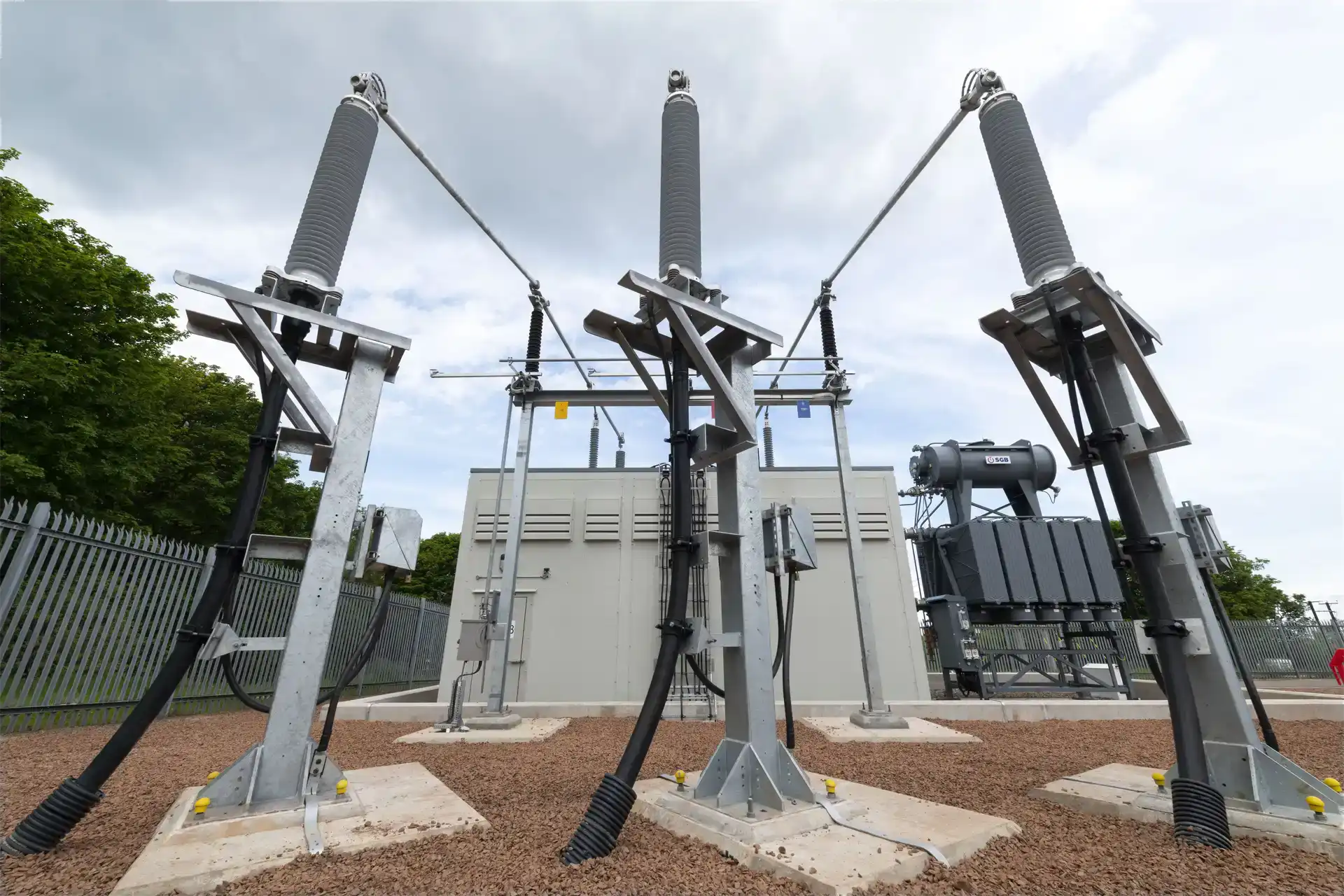

Installed plant items included 1 no. distribution boards, 6 no. control & panel protection panels, 2 no. transformers and AIS switchgear including disconnectors, earth switch, surge arrestor, CT’s, CVT’s and busbars.
The total project meterage included 12,650m of cable and 590 no. joint/ terminations.
